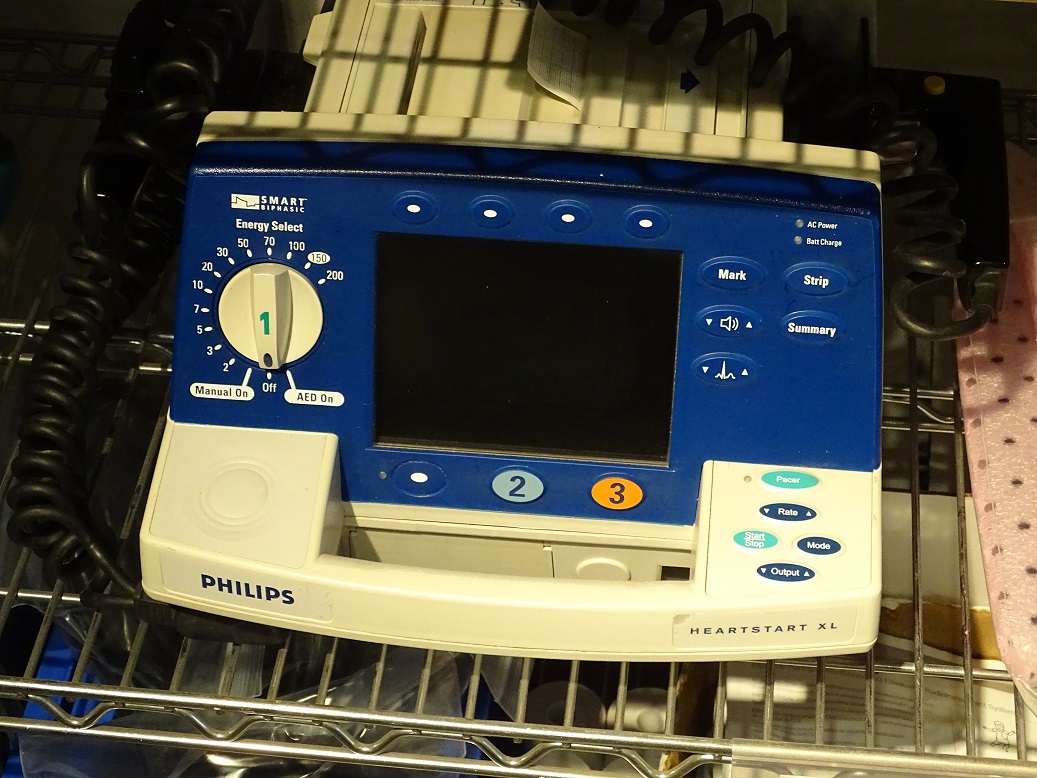

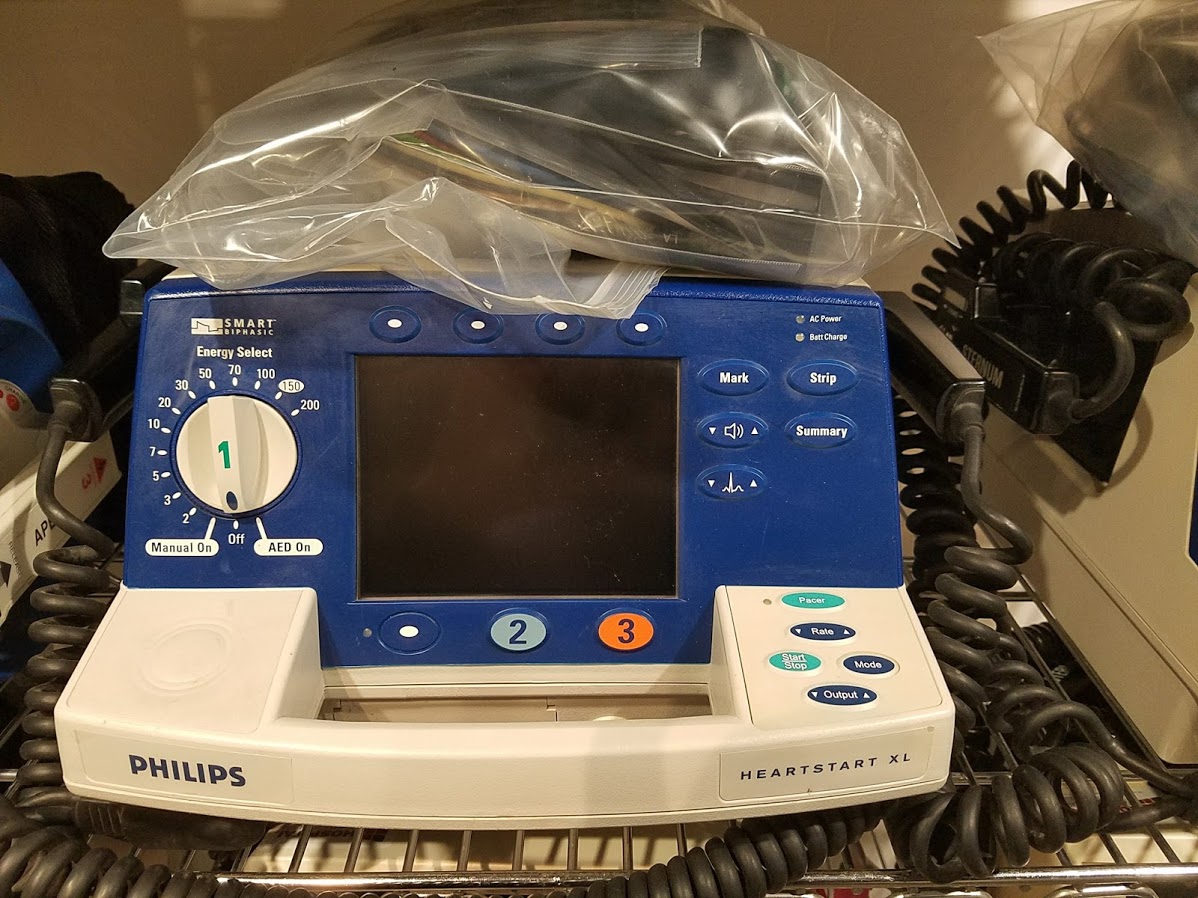

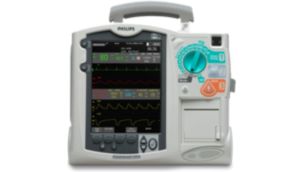

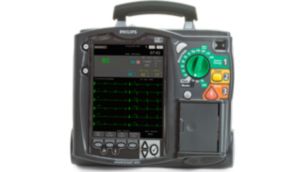

Philips Heartstart XL Defibrillator

Specifications

Environmental

Humidity	Up to 95 % relative humidity
Atmospheric pressure range	Operating and storage – 1014 mbar to 572 mbar(0 to 15000 ft; 0 to 4500 m)
Shock(a)	Operating Half-sine waveform/duration ≤11 ms/acceleration ≥ 15.3 G at 3 shocks per face
Shock(b)	Non-operating Trapezoidal waveform/acceleration 30G/ velocity change 7.42 m/s +/-10% 1 shock per face
Water/solids ingress resistance	Meets Ingress Protection level IP21
EMC	Complies with the requirements of standard EN 60601-1-2:2002
Safety	Meets UL 60601-1 (1st edition)/EN 60601-2-4:2003/EN 60601-1:1990
Mode of operation	Continuous
AC Line powered	100-240 VAC/50 or 60 Hz/1-0.46A/Class I Equipment
Battery powered	Minimum 14.4 V rechargeable lithium ion VAC/Hz

Physical dimensions Defibrillator Model HeartStart XL+

Size	Size 9˝ high x 11.6˝ wide x 10.9˝ deep (23 cm x 29.6 cm x 27.9 cm)

Battery

Type	Rechargeable, lithium ion; see battery label for capacity information
Dimensions	1˝ high x 4.5˝ wide x 5.7˝ long (23.6 mm high x 116 mm wide x 146 mm long)
Weight	Approximately 1.5 lbs (0.68kg)
Capacity	With a new fully charged battery, at 20 °C (68 °F) one of the following: At least 3 hours of monitoring (ECG and SpO2 monitored continuously and NBP sampled every 15 minutes) followed by 20 full-energy charge/shocks. OR at least two hours of pacing (180ppm at 140mA with 40 msec pulse width) while monitoring (ECG and SpO2 monitored continuously and NBP sampled every 15 minutes) followed by 20 full-energy charge/shocks; OR at least 175 full energy charge/shocks
Charge time device off	With the temperature between 0-35° C (32-95° F) less than 3 hours to 100% capacity and less than 2 hours to 80% capacity
Life	Approximately 3 yr
Battery indicators	Battery gauge on battery, capacity indicator on display, power indicators on front of device; flashing RFU indicator, chirp and Low Battery messages on the display for low battery condition. When a low battery message first appears there is still enough energy for at least 10 minutes of monitoring and 6 maximum energy discharges
Battery storage	Storing the battery for extended periods at temperatures above 40° C (104° F) reduces battery capacity and degrades battery life

Physical dimensions

Weight	Weight 14.7 lbs (6.6 kg), includes one battery/one new roll of paper/one pads cable. Incremental weight of external standard paddles and paddle tray is less than 3 lbs (1.3 kg)
Standard operator position	Within one meter (3 feet) of the device

Power supply

Type	Rechargeable lithium ion battery; AC power using a protectively grounded outlet

Display

Size	Approximately 6.5″ (16.5 cm) diagonal viewing area
Resolution	640 x 480 pixels (VGA) with 32 brightness levels per color
Type	Approximately 6.5″ (16.5 cm) diagonal viewing area
Sweep speed	20 mm/s nominal (stationary trace; sweeping erase bar) for ECG and SpO2 mm/s
Wave viewing time	5.2 sec

Environmental

Operating temperature	0°C to 45°C (32°F to 113°F)
Storage temperature	20°C to 70°C (-4°F to 158°F)

Defibrillator

Waveform	Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance
Shock delivery	Via multifunction electrode pads or paddles
Shock series	Configurable energy escalation in a series
Charge time	3 seconds to the recommended adult energy level (150 Joules) with a new fully-charged battery installed Less than 5 seconds to the selected energy level (up to 200 Joules) with a new fully charged battery installed The device powers on in manual defibrillation mode ready to deliver shock in less than 8 seconds plus applicable charge time assuming an immediate selection of an energy and initiation of a charge even at 90V AC and after 15 maximum energy discharges The device powers on in AED mode ready to deliver shock in less than 17 seconds plus applicable charge time
Leads sensing	Leads off sensing and PCI sensing for pads/paddles. Apply 500nA rms (571Hz); 200uA rms (32KHz)
Minimum patient impedance range	25 ohm (external defibrillation);15 ohm (internal defibrillation) ohm
Maximum patient impedance range	250 ohm. Actual functional range may exceed these values ohm

Printer

Continuous ECG strip	The Print button starts and stops the strip. The printer can be configured to be run real time or with a 10-second delay. The strip prints the primary ECG lead and a second wave with event annotations and measurements
Auto printing	The printer can be configured to automatically print on Mark Events, Charge, Shock, and Alarm
Reports	The following can be printed: Event Summary (Long or Short)/Vital Signs Trends/Operational Check/Configuration/Status Log/Device Information
Speed	25 mm/s with an accuracy of +/-5% mm/s
Amplitude accuracy	5% for offset voltages of +/- 300 mV at 5Hz
Paper size	50 mm wide x 30 m long
